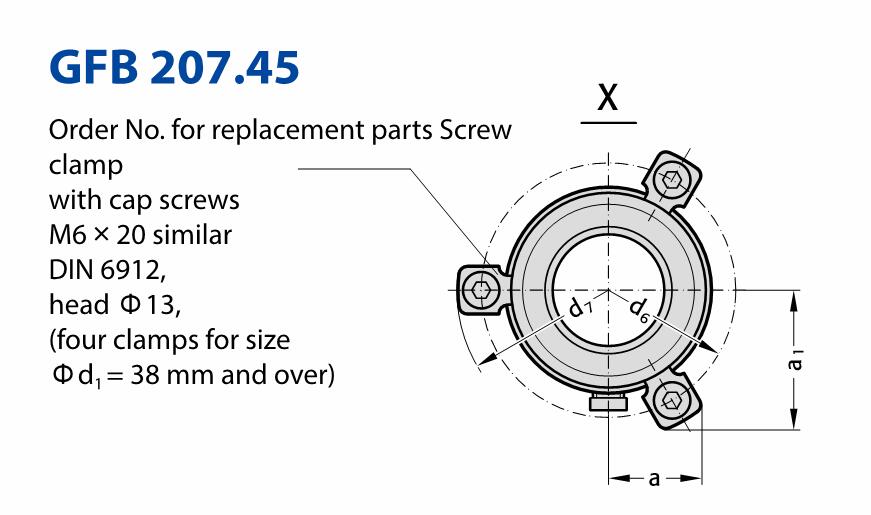

Note:Headed Guide Bushes are to be held in H6-retainer bores. Three screw clamps are provided for fxing; sizes d,=38 mm and over have four.
Material: Bronze
Execution: Contact surfaces with solid lubricant rings. Diameter d; and collar face precision ground.
