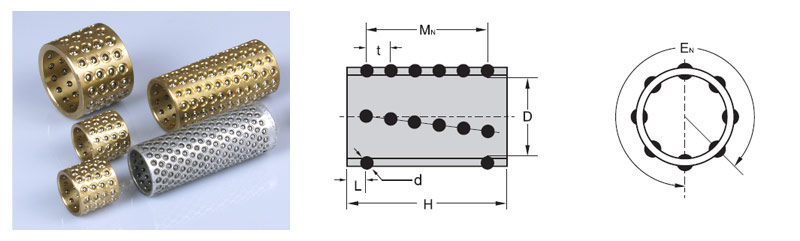

FZH 直线轴承标准尺寸及公差
|
单位：mm
|
|
型号规格
|
D
|
H
|
d
|
EN
|
MN
|
球
|
t
|
L
|
|
FZ(*)1950
|
19
|
50
|
3
|
12
|
8
|
96
|
5.5
|
5.75
|
|
FZ(*)1960
|
19
|
60
|
3
|
12
|
10
|
120
|
5.5
|
5.25
|
|
FZ(*)2050
|
20
|
50
|
3
|
12
|
8
|
96
|
5.5
|
5.75
|
|
FZ(*)2060
|
20
|
60
|
3
|
12
|
10
|
120
|
5.5
|
5.25
|
|
FZ(*)2250
|
22
|
50
|
3
|
14
|
8
|
112
|
5.5
|
5.75
|
|
FZ(*)2260
|
22
|
60
|
3
|
14
|
10
|
140
|
5.5
|
5.25
|
|
FZ(*)2360
|
23
|
60
|
3
|
14
|
10
|
140
|
5.5
|
5.25
|
|
FZ(*)2475
|
24
|
75
|
3
|
16
|
13
|
208
|
5.45
|
4.8
|
|
FZ(*)2550
|
25
|
50
|
3
|
16
|
8
|
128
|
5.5
|
5.75
|
|
FZ(*)2560
|
25
|
60
|
3
|
16
|
10
|
160
|
5.5
|
5.25
|
|
FZ(*)2575
|
25
|
75
|
3
|
16
|
13
|
208
|
5.45
|
4.8
|
|
FZ(*)2775
|
27
|
75
|
3
|
16
|
13
|
208
|
5.45
|
4.8
|
|
FZ(*)2860
|
28
|
60
|
4
|
14
|
8
|
112
|
6.5
|
7.25
|
|
FZ(*)2875
|
28
|
75
|
4
|
14
|
11
|
154
|
6.5
|
5.0
|
|
FZ(*)3060
|
30
|
60
|
4
|
14
|
8
|
112
|
6.5
|
7.25
|
|
FZ(*)3075
|
30
|
75
|
4
|
14
|
11
|
154
|
6.5
|
5.0
|
|
FZ(*)3260
|
32
|
60
|
4
|
16
|
8
|
128
|
6.5
|
7.25
|
|
FZ(*)3275
|
32
|
75
|
4
|
16
|
11
|
176
|
6.5
|
5.0
|
|
FZ(*)3290
|
32
|
90
|
4
|
16
|
13
|
208
|
6.5
|
6.0
|
|
FZ(*)3685
|
36
|
85
|
4
|
16
|
12
|
192
|
6.5
|
6.75
|
|
FZ(*)3690
|
36
|
90
|
4
|
16
|
13
|
208
|
6.5
|
6.0
|
|
FZ(*)3870
|
38
|
70
|
5
|
16
|
8
|
128
|
8.0
|
7.0
|
|
FZ(*)3890
|
38
|
90
|
5
|
16
|
11
|
176
|
7.9
|
5.5
|
|
FZ(*)4090
|
40
|
90
|
5
|
16
|
11
|
176
|
7.9
|
5.5
|
|
FZ(*)4590
|
45
|
90
|
5
|
18
|
11
|
198
|
7.9
|
5.5
|
|
FZ(*)45110
|
45
|
110
|
5
|
18
|
13
|
234
|
8.0
|
7.0
|
|
FZ(*)5090
|
50
|
90
|
5
|
20
|
11
|
220
|
7.9
|
5.5
|
|
FZ(*)50110
|
50
|
110
|
5
|
20
|
13
|
260
|
8.0
|
7.0
|
|
FZ(*)6090
|
60
|
90
|
5
|
22
|
11
|
242
|
7.9
|
5.5
|
|
FZ(*)60110
|
60
|
110
|
5
|
22
|
13
|
286
|
8.0
|
7.0
|
|
FZ(*)80130
|
80
|
130
|
5
|
28
|
15
|
420
|
8.0
|
9.0
|
